datasheet_kiheung_dr-u1000_floor-type_cnc_mill_rev2_1
Used
datasheet_kiheung_dr-u1000_floor-type_cnc_mill_rev2_1datasheet_kiheung_dr-u1000_floor-type_cnc_mill_rev2_4datasheet_kiheung_dr-u1000_floor-type_cnc_mill_rev2_2datasheet_kiheung_dr-u1000_floor-type_cnc_mill_rev2_3
Used Machines, Milling Machines

Kiheung Floor-type Milling machine Model DR-U1000

Equipped with

  • T-slotted floor plates (2 parts, of different sizes)
  • Fanuc 0i CNC system

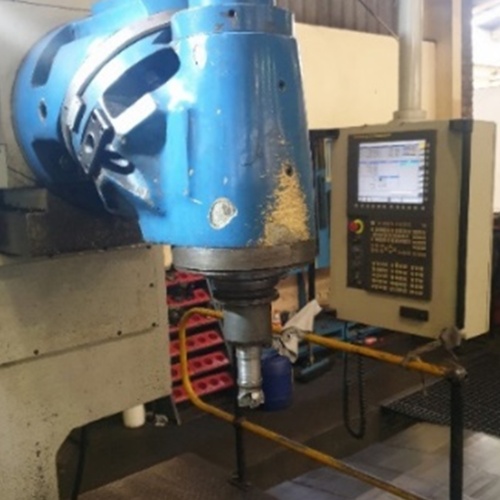

  • A manual universal indexing head
  • Spindle orientation for rigid tapping

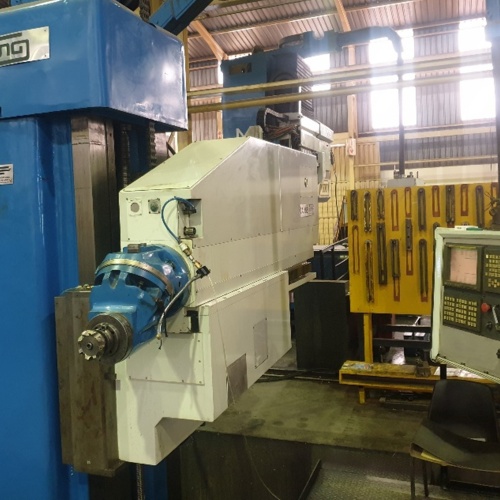

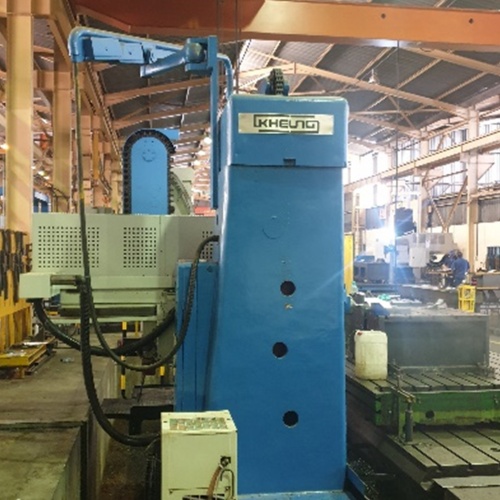

  • This machine consists of a reconditioned bed, saddle and column of a used Droop & Rein floor borer, with a KIHEUNG ram-type headstock that was fitted to the column. The machine was built in 2006 and equipped with a Fanuc 0i 3-axis CNC system.

Download Datasheet
Ask a Question

Basic Specifications

Year of original manufacture 2008
Floor plate area 4500 x 2500 mm (approx., in 2 parts)
X-axis travel (table long travel) 4000 mm
Y-axis travel (Ram stroke) 1000 mm
Z-axis travel (Headstock vertical travel) 1600 mm
Spindle power 22 kW
Spindle speed range 0 - 4000 rpm
Spindle taper BT 50
