In Stock
New
3446a1b4-55e2-4ee3-9b36-d83f83735188_1374979485c105bb65-18ea-4cb4-b456-441eb20b502c_422375059
Horizontal Lathes, Lathes & Turning Machines, New Machines, In Stock

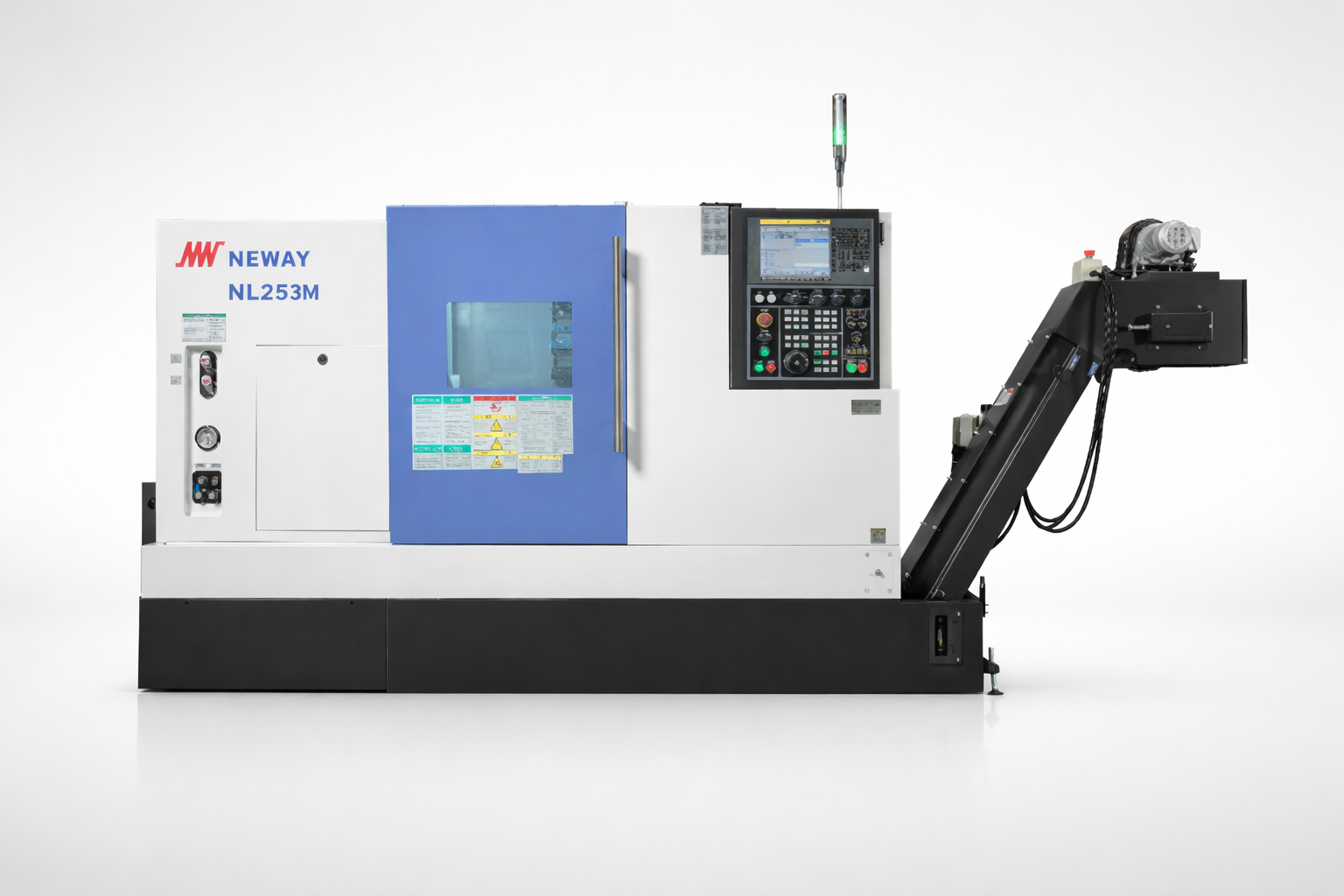

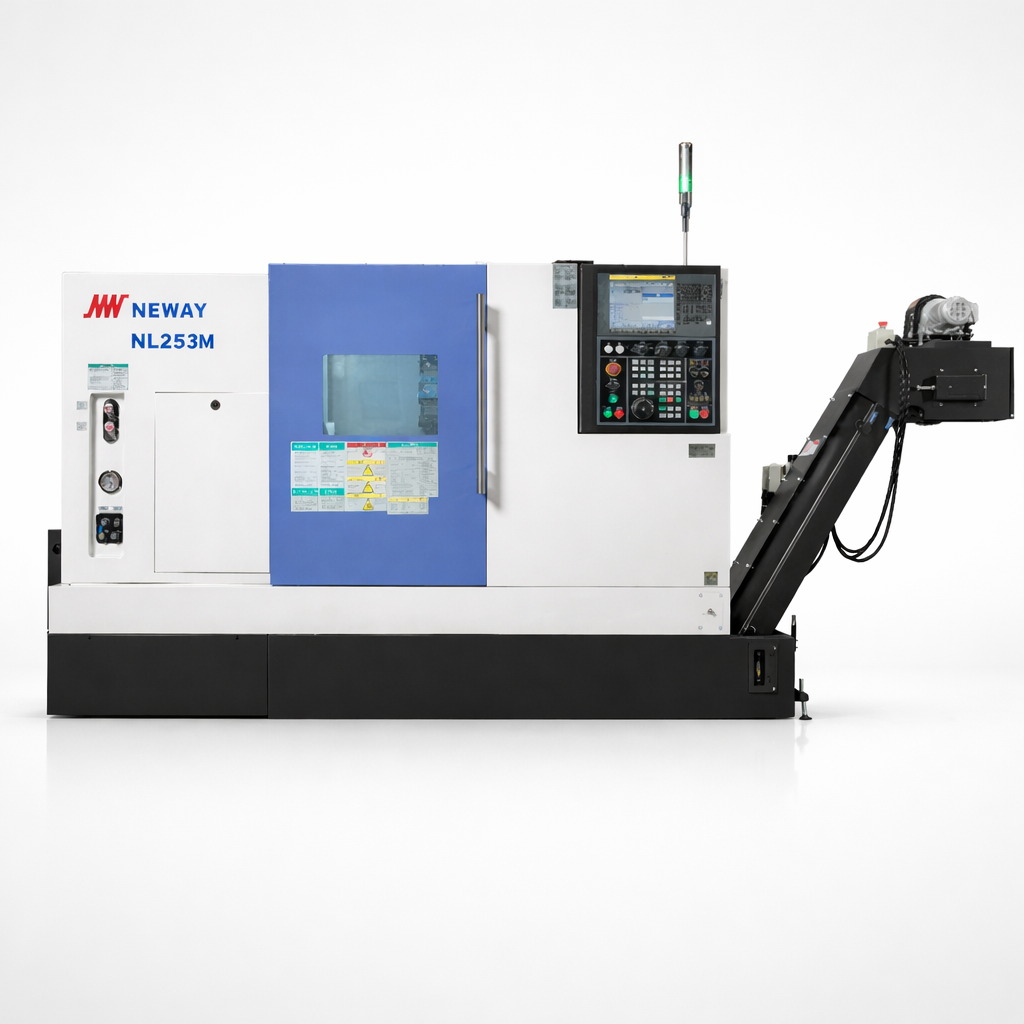

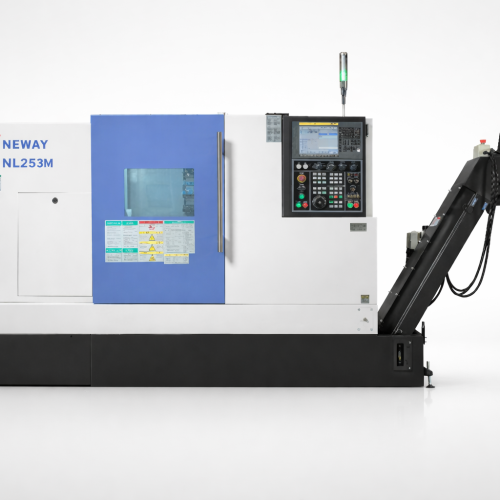

Neway Horizontal Turning Center, model NL253M

Ask a Question
Swing over bed / saddle Ø550 / Ø370 mm
Max turning diameter Ø290 mm
Max turning length 725 mm
Spindle bore diameter Ø62 mm
Travel of X / Z 180 / 830 mm
Servo motor torque (X & Z) 11 Nm
Spindle power 11-15 kW
Spindle nose A2-6
Spindle speed 5000 rpm
Chuck 8" hollow hydraulic
Rapid traverse (X) 24 m/min
Rapid traverse (Z) 30 m/min
Feeding speed 1-8000 mm/min
Tool capacity 12-position Live Turret BMT55
Tool indexing time 0.5 sec/post
Turning tool size 25 x 25 mm
Max boring tool diameter Ø40 mm
Max speed of drive tools 4000 rpm
Max drilling Ø14 x 0.15 mm
Max threading M10x1.5 / M24x1
Max slotting Ø16 x 12 x 40 mm
Tailstock quill diameter Ø100 mm
Tailstock quill travel 100 mm
Tailstock bore taper Morse #5 (live center)
Power capacity 30 kVA
Cutting liquid volume 300 L
Machine dimensions (L x W x H) 4315 x 1825 x 1825 mm
Net weight 4200 kg
