3d839859-5190-4cd9-a114-5f7f6a4dd63b
In Stock
Used
3d839859-5190-4cd9-a114-5f7f6a4dd63b00348e7a-ba4f-4890-a9bc-8413edbb1546d56e68d7-36be-4eb7-b806-d6992be520ba
Drilling Machines, Drilling & Boring Machines, In Stock, Used Machines

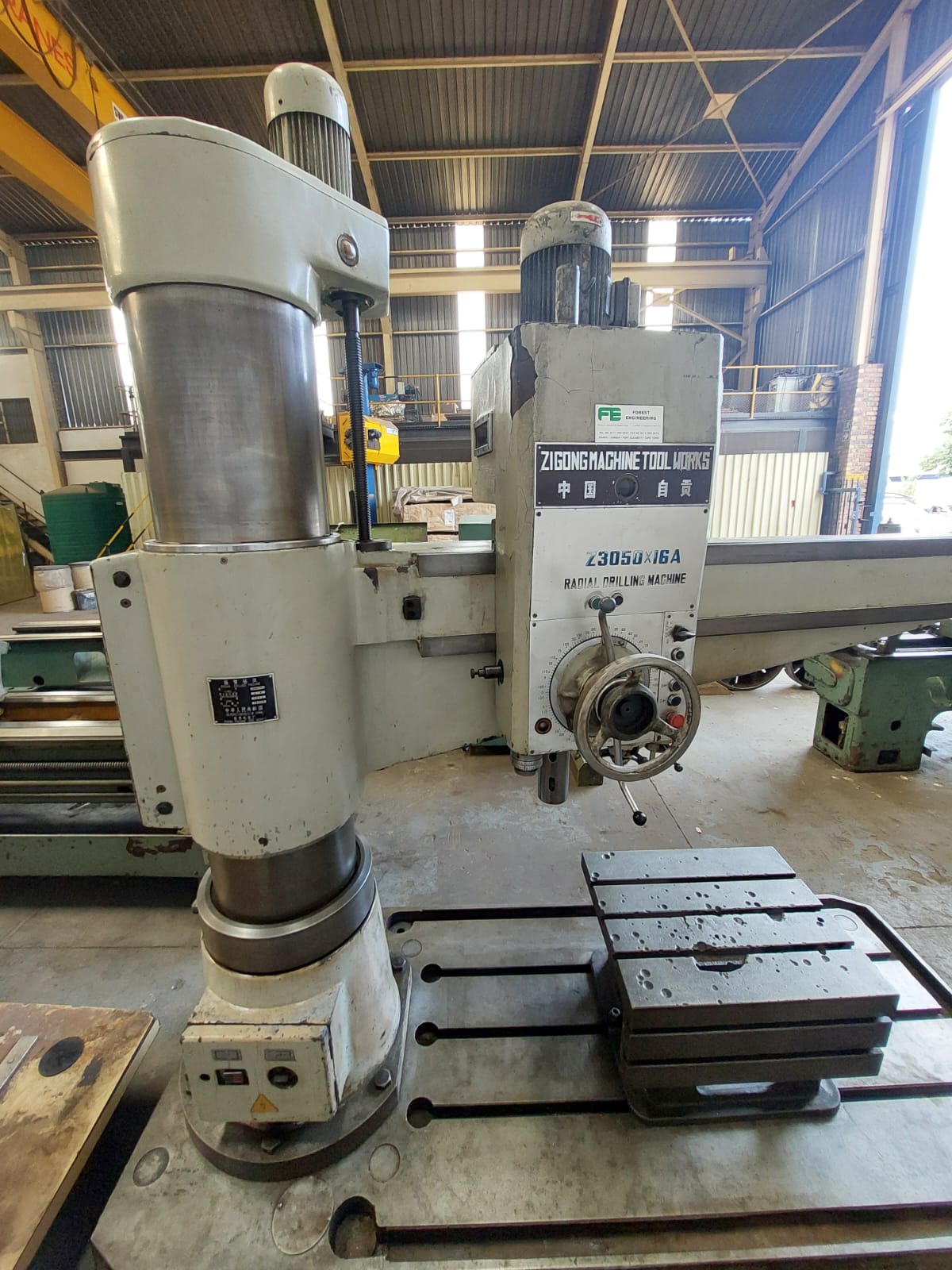

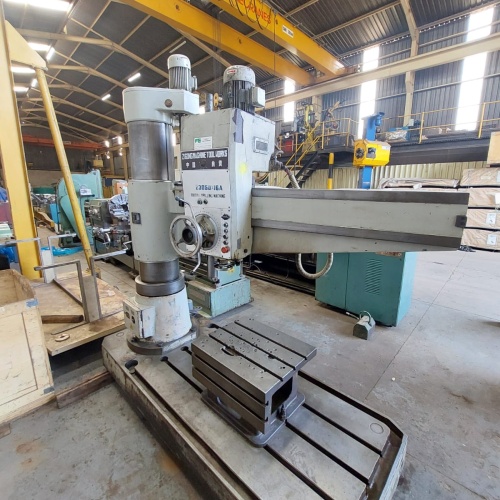

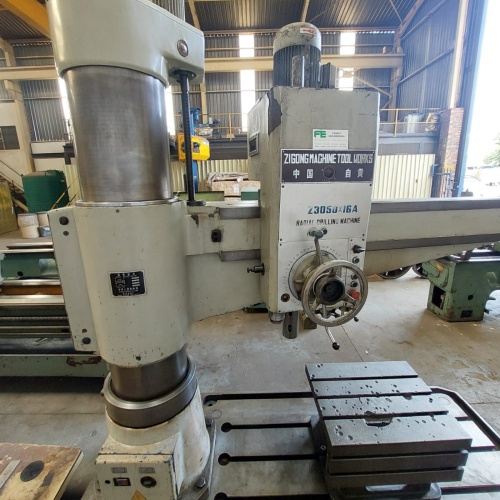

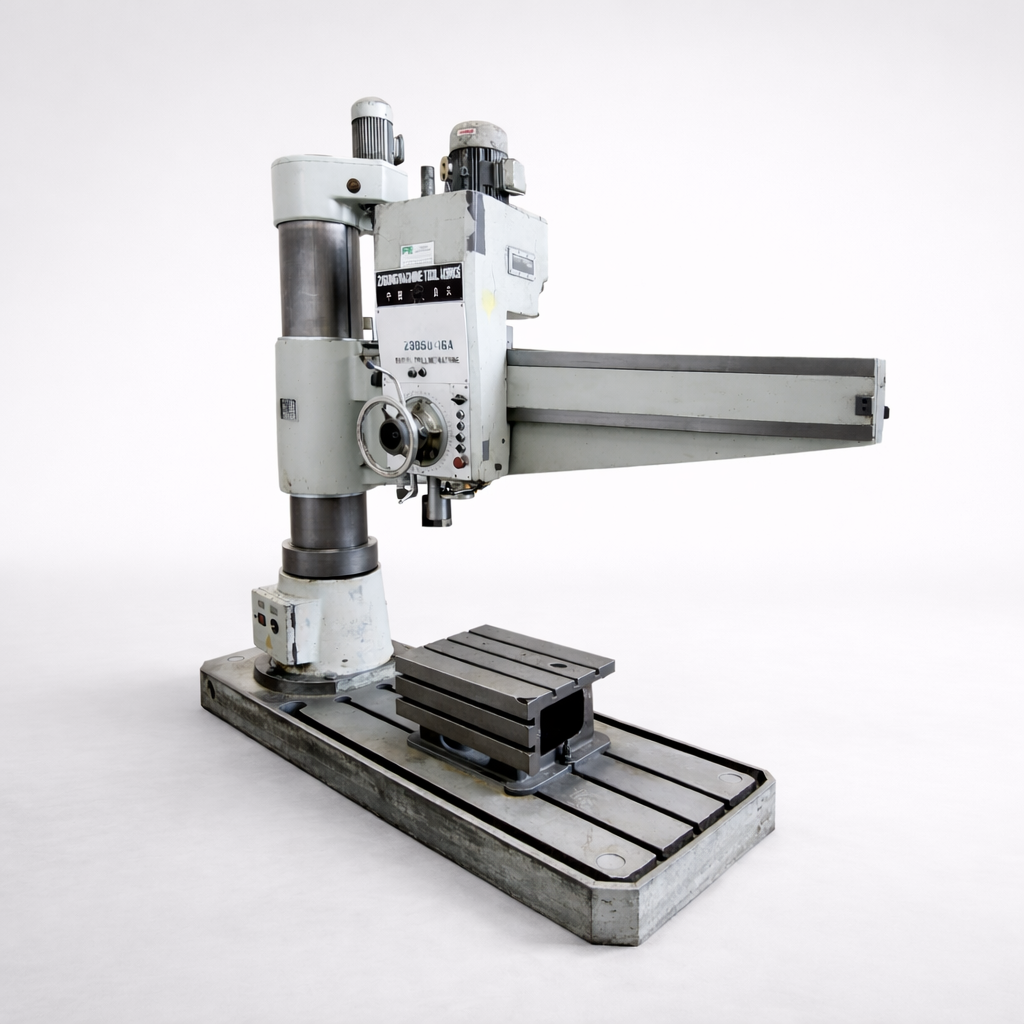

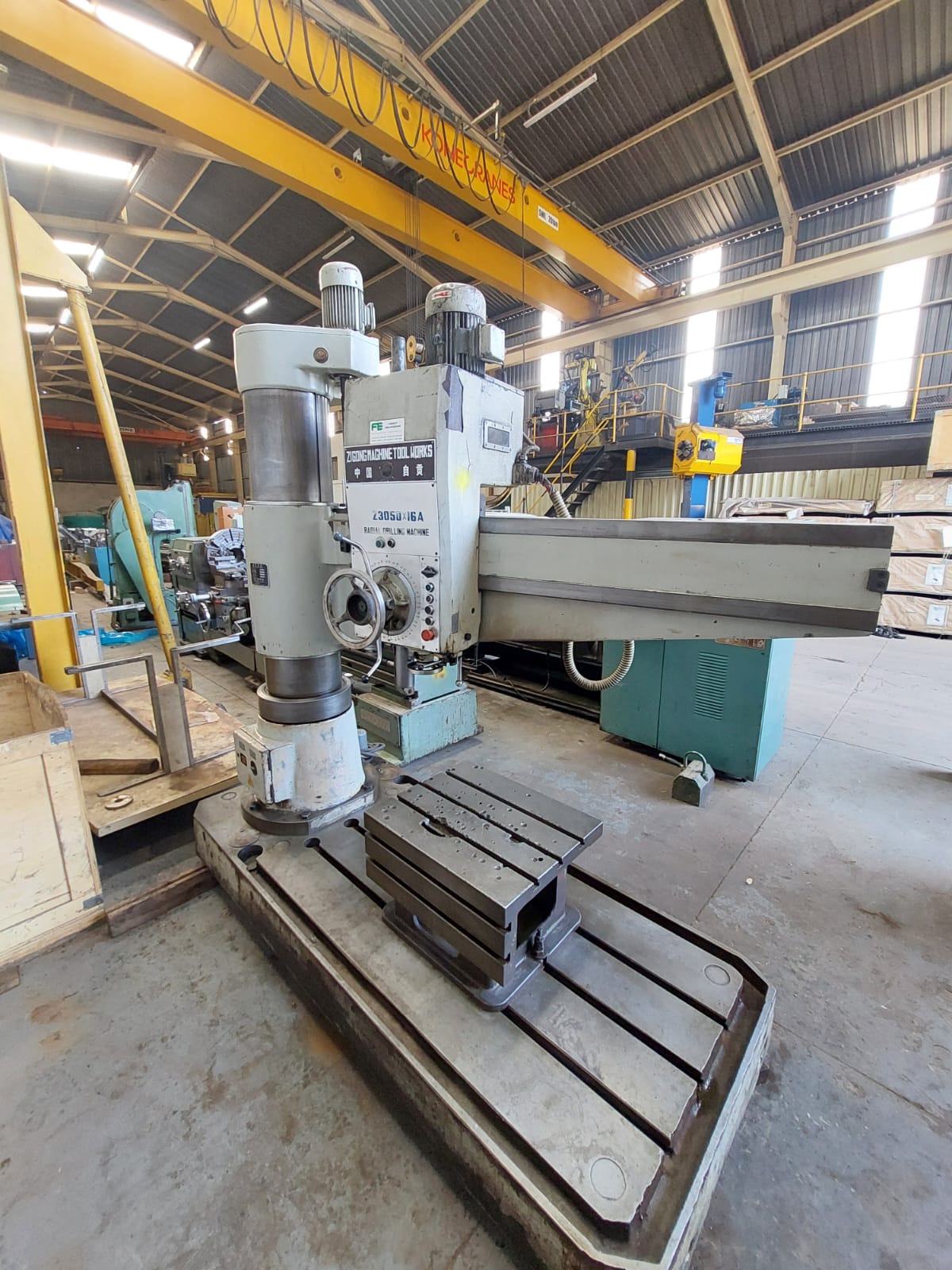

Zigong Radial Drill, model: Z3050 x 1600mm

Ask a Question
Drilling Capacity 50 mm
Arm Reach / Radius Maximum 1600 mm (distance from spindle axis to column)
Spindle Taper Morse Taper 5 (MT5)
Spindle Speed Range 16 speed steps, 25 - 2000 RPM
Spindle Feed Range 16 feed steps, 0.04 - 3.2 mm/rev
Spindle Travel 315 mm
Arm Vertical Movement 580 - 700 mm lifting range
Distance: Spindle to Base 320 - 1220 mm
Main Motor Power 4 kW
Machine Dimensions (L x W x H) Approx. 2500 x 1070 x 2480 mm
