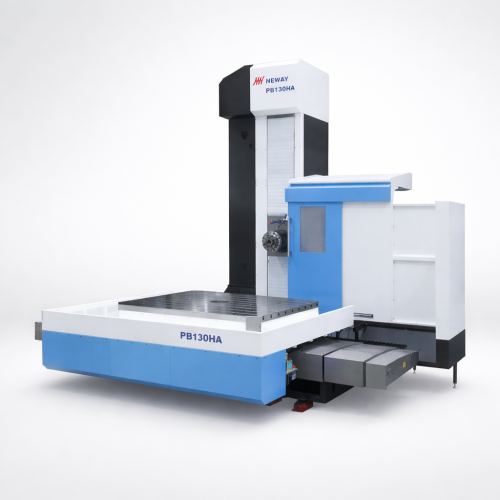

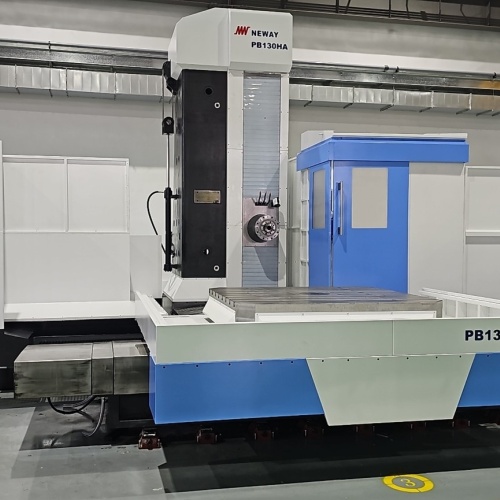

| WORK RANGE | Table cross travel (X-axis) | 4000 mm (extended from std 3m) |
| WORK RANGE | Headstock vertical travel (Y-axis) | 3200 mm (extended from std 2.2m) |
| WORK RANGE | Column infeed travel to table (Z-axis) | 2000 mm |
| WORK RANGE | Boring spindle stroke (W-axis) | 800 mm |
| WORK RANGE | B axis travel | 0～360° |
| WORK RANGE | Spindle center to work table (Y) | 100 to 2300 mm |
| WORK RANGE | Spindle terminal to worktable center (min) | -50 mm to 2750 mm |

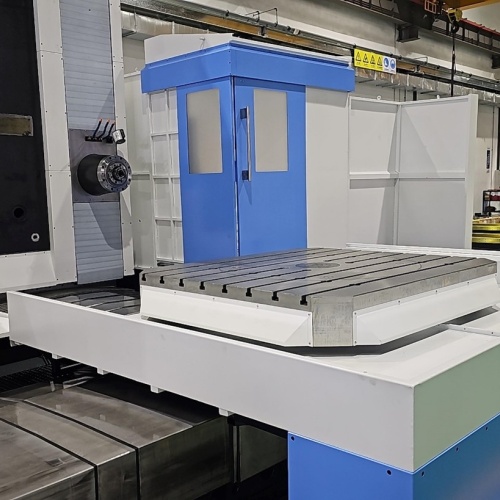

| WORK TABLE | Size | 2500 x 2000 mm (increased from standard 1800 × 2000 mm) |
| WORK TABLE | Loading weight | 25 tons (increased from std 20 tons) |
| WORK TABLE | T slot width | 28 mm |
| WORK TABLE | Guideway type | Roller/sliding composite guideway |
| SPINDLE | Spindle power | 37/45 kW |
| SPINDLE | Spindle type | BT50 |
| SPINDLE | Pull-stud type | MAS403 P50T-1 |
| SPINDLE | Spindle speed | 10-2500 r/min |
| SPINDLE | Spindle diameter | Ф130 mm |
| SPINDLE | Torque | 2942 / (3578 for 30 min) Nm |
| SPINDLE | Max Axial force | 25000 N |
| SPEED | Rapid travel X/Y/Z/W | 10/10/10/8 m/min |
| SPEED | Feeding rate X/Y/Z/W | 6 m/rpm |
| ACCURACY | Position Accuracy X/Y/Z/W | 0.025/0.02/0.02/0.022 mm |
| ACCURACY | Position Accuracy B | 5" |
| ACCURACY | Reposition accuracy X/Y/Z/W | 0.017/0.015/0.015/0.015 mm |
| ACCURACY | Reposition accuracy B | 3" |
| LUBRICATION SYSTEM | Lubrication tank volume | 3 × 4 L |
| LUBRICATION SYSTEM | Lubrication pump power | 100 W |
| COOLANT SYSTEM | Coolant tank volume | 900 L |
| COOLANT SYSTEM | Coolant tank motor power | 2.2 kW |
| COOLANT SYSTEM | Filter | First layer 10 mesh / second 40 mesh |
| COOLANT SYSTEM | Max. Coolant pressure | 0.7 MPa |
| COOLANT SYSTEM | Max flow | 66 L/min |
| OTHERS | Power supply | 120 A |
| OTHERS | Voltage/Hertz | 380 V / 50 Hz |
| OTHERS | Air source pressure | 0.6~0.8 MPa |
| OTHERS | Air flow | 500 L/min |
| OTHERS | Power volume | 80 kVA |
| OTHERS | Machine weight | Approx 45000 kg |
| OTHERS | Dimension | As per supplied drawings |
